Description

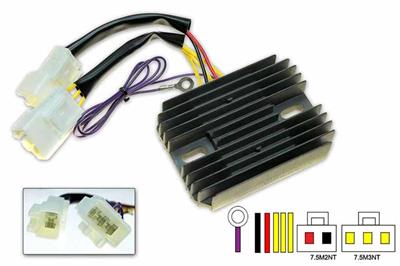

Regulator Rectifier fits:
Honda: CBR1000 (04 on), CBR1000RR (Fireblade), CBF1000
Wire colours: 3 x yellow, 1 x red, 1 x black 1 x purple*
*This special design of regulator rectifier requires the purple cable to be connected directly to the positive terminal on the battery. Failure to do this will cause incorrect operation of the regulator rectifier and will invalidate the warranty of the product.
New high efficiency design with a super heavy duty series electronic circuit. This allows the generator and regulator/rectifier to operate at a lower temperature thus extending their life.
Produces less heat than conventional shunt regulator.
Works where airlow is limited.
In-built thermal protection.
Manufactured by ourselves here in the UK
