Description
1988 – 1996 Suzuki RM 125

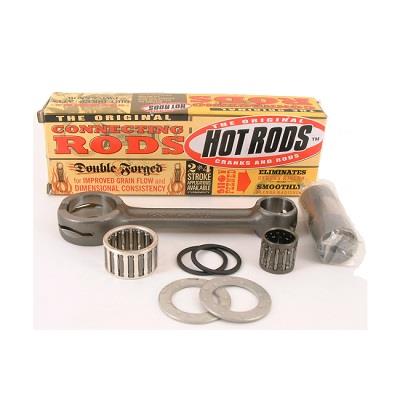

HOTRODS CONNECTING ROD, CONROD REBUILD KIT
Cross reference numbers. SUZUKI: 12161-01B41,,, SUZUKI: 12161-27C00-0B0,,, SUZUKI: 12161-27C00-0D0,,, SUZUKI: 12161-27C10,,, SUZUKI: 12161-43D00,,,
Technical Specifications:
Big End Bearing (mm): 22x28x16
Big End Bore (mm): 28.00
Big End Width (mm): 15.75
Center To Center (mm): 105.00
Pin Diameter (mm): 22.00
Pin Length (mm): 53.00
Small End Bearing (mm): 15x19x17.8
Small End Bore (mm): 19.00
Small End Width (mm): 17.95
Washer Thickness (mm): 1.5 / 1.52 ring
